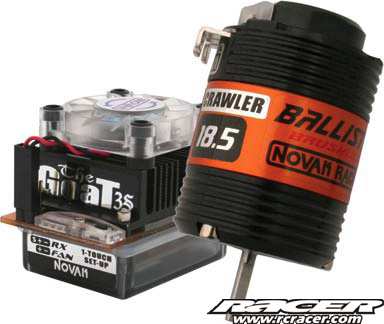

Novak Goat 3S
Novak’s next-generation Ballistic motors have now entered the crawling field. The high-performance Ballistic Crawler Brushless Motors – 18.5T (#3618) and 21.5T (#3619) coupled with Novak’s impressive Goat 3S Crawler Brushless/Brush ESC are expected to be two of the most sought after brushless crawling systems on the market. Because of their extreme versatility, the Goat 3S Crawler Brushless Systems – 18.5T (#3028) and 21.5T (#3029) can tackle all crawling conditions with a simple stator switch. Because the crawler-specific hardware is located outside of the hand-wound stators, drivers can replace the stators at any time to properly combat any type of terrain or course. The Goat 3S Systems also have the ability to run on either two or three-cell Li-Po batteries via Novak’s auto-detect software. Additionally, one of the three profiles is specific for worm-drive vehicles, which do not require electronic drag brakes.
High-Level Speed Control
The Goat 3S’s completely programmable interface is preset to excel in any crawler rig, whether it be worm-drive or standard vehicles. Simply install it, push the One-Touch button and the Goat 3S will easily manoever through any terrain. The powerful speed control also comes equipped with instant reverse via Novak’s Zero Reverse Delay, which provides immediate power delivery in both forward and reverse directions. Additionally, the Goat 3S’s third profile features a fully programmable brushed motor option to allow for motor experimentation. But the versatility doesn’t end there, attach a non-crawling Ballistic motor and the Goat 3S will operate the same as Novak’s speedy Havoc 3S with forward, brake and reverse settings. The Goat 3S also includes everything necessary to operate, including a cooling fan for additional airflow and an external high-voltage three-amps switching regulator to provide six volts of output without overheating the speed control.
High-End Crawler Motor
And like all Novak Ballistic motors, the Ballistic Crawlers contain an easy-to-adjust timing assembly, heavy-duty solder tabs and a removable nine-inch shielded sensor harness. And by taking advantage of the Ballistics’ interchangeable wound stator construction, crawlers can simply replace the installed 18.5 or 21.5-turn stator for any available stator between 13.5 and 21.5 turns. The motors are also equipped with a custom-silicone gasket seal to keep dirt and debris from damaging the motors’ sensor plug. The Ballistic Crawler motors also include a sintered rotor. The rotor’s large diameter and exclusive magnetic material provide the motors with more torque and stronger braking. It also increases natural drag braking and improves the motors’ initial throttle response, providing more control on steep climbs and downhill descents.
Novak’s Goat 3S Crawler Brushless System – 18.5T (#3028) & 21.5T (#3029) and Ballistic Crawler Brushless Motor – 18.5T (#3618) & 21.5T (#3619) are scheduled to ship in the end of October 2009. For more information about this product, visit the Novak Web site (www.teamnovak.com).
Novak’s Goat 3S/Ballistic Crawler System Features
User-friendly interface with six adjustable parameters: Drag Brake (10 settings), Dead Band (5 settings), Minimum Drive (5 settings), Drive Frequency in brush mode (7 settings), Li-Po Cut-Off and Reverse Motor Rotation
Water-resistant case with gasket seal
Sensor-based for excellent braking and low-speed driveability
Four status LEDs for easy programming and trouble shooting
Auto Detect Brushed Motor Mode, Locked Rotor Detection and Thermal Overload Protection
Oversized front motor bearing [1/2†x 3/16†(12.7 x 4.8mm)] for increased load handling and bearing life
Completely rebuildable motor design
Nickel-plated sintered Neodymium rotor with 0.125†pinion shaft that accepts all existing pinion gears
Meets RoHS compliance and includes 120-Day Warranty
Designed and assembled by Novak in Irvine, California using globally-sourced components
Novak’s Goat 3S/Ballistic Crawler System Specifications
Input Voltage : 2-3S Li-Po cells or 4-9 NiMH cells (1.2V/cell)
System weight : 10.3 oz. (292.0 g)
ESC Footprint : 1.18†x 1.54†(30.0 x 39.1 mm)
Design : Sensor-based
Motor Size : 2.07†x 1.41†(52.6 x 35.8mm)
Motor Limit : 13.5-turn (2S Li-Po) & 18.5-turn (3S Li-Po) Novak 540-size sensored brushless; 27-turn (2S Li-Po) & 33-turn (3S Li-Po) 540-sized brush motor
Sensor Harness : 9†(230mm)
On-Resistance (brushless) : 0.00070 ohms @ 25°C trans. temp.
BECs : 6.0 volts DC/5.0 amps; 6.0 volts DC/3.0 amps switching regulator (external)
Rated/Braking Current : 150 Amps @ 25°C trans. temp.
Status LEDs : 4
Voltage Cut-Off : 6.25V (2S) or 9.75V (3S) (when Li-Poly Cut-Off Circuitry is enabled)
Power Wires : 14G Super-Flex Copper-Strand Silicone Wire
Watts : 119 (#3618), 85 (#3619)
Replacement / Optional Parts
#5315 or #5320 User-replaceable Input Harness (replacement)
#5351-#5353 Brushless Shielded Sensor Harnesses – 4†& 6†(optional) 9†(replacement)
#5463 3-Amp High-Voltage Universal BEC (replacement)
#5508 14-Gauge Silicone Brushless Wire Set (replacement)
#5600 Switch Harness (replacement)
#5648 Clear Cooling Fan 30x30x6mm (replacement)
#5686 Power Trans-Cap Module – 3S Li-Po (replacement)
#5731 Low-Loss Power Connectors – 3.5mm (optional)
#5940 Ballistic Front End Bell and Bearings – 1/8†(replacement)
#5941 Ballistic Sintered Rotor – 12.3mm (optional)
#5950 Crawling Sintered Tuning Rotor – 14mm (replacement)
#S5357-#S5358 Brushless Motor Shielded Sensor Extension Harness – 4″ & 9†(optional)
#S5420-#S5424 Brushless Motor Sleeves (replacement/optional)
#S5932 Ballistic Motor Hardware Kit (replacement)
#S5945 Ballistic Crawler Sensor Assembly (replacement)
#S5943 Ballistic Bearing Cap/Replacement Rear Bearing (replacement)
#S5944 Ballistic Back End Bell (replacement)
#S6613-#S6621 Ballistic Wound Stators – 13.5T-21.5T (replacement/optional)
Source: Novak
