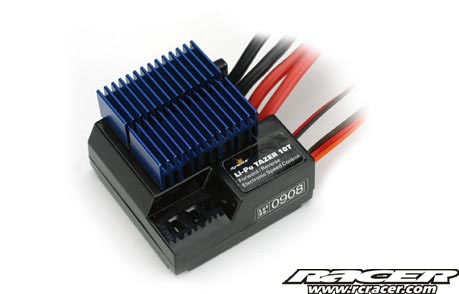

Dynamite LiPo Tazer 10T FWD/REV ESC
The Dynamite LiPo Tazer represents an evolution of the Tazer Electronic Speed Controller series. With features like push-button programming and thermal overload protection, this ESC provides peace of mind knowing that setup and safety are taken care of right out of the box. The LiPo Tazer also provides reverse operation and smart braking which applies the braking function of the ESC in the event the reverse is initiated while the vehicle is moving forward, protecting the vehicle’s transmission. As an added safety feature, the LiPo Tazer has a built-in low voltage cutoff to help protect and extend the life of the LiPo batteries. Not using LiPo’s? No problem, the LiPo Tazer is backward compatible and can utilise NiMh packs as its primary power source as well.
Tazer ESC Features
- Compatible with LiPo and NiMh battery types
- Thermal overload protection
- Push button programming makes setup a breeze
- Smart braking system helps prevent transmission damage
- High frequency design delivers smooth speed transition
- Tazer ESC Specification
- Forward: Yes, Proportional
- Reverse: Yes, Proportional
- Time Delay Brake: Yes
- Continuous Maximum Current: 250A
- Input Voltage: 4.8-8.4V NiMh, 7.4V LiPo
- Input Connector Types: Tamiya
- Motor Limit: 10T
- Momentary Peak Current: 1000A
- Dimensions (WxLxH): 38.6 x 26.2 x 22.5mm (1.25 x 1.02 x .888 in)
- Weight: 34g (1.2oz)
- BEC Voltage: 5V DC, 1 amp max
- PWM Frequency: 2kHz
- Overload Protection: Thermal
- Full On Resistance: 0.0014 ohms
DYN4928 Dynamite LiPo Compatable Tazer ESC RRP £39.99
Source: Horizon Hobby UK
