Team Associated RC10T4.1 Brushed Motored RTR Truck

By admin On December 20, 2009 · Add Comment

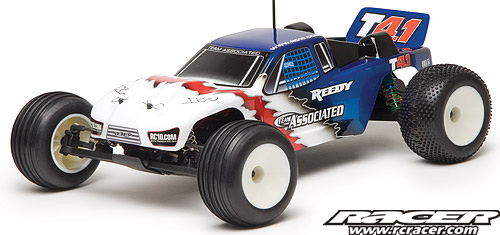

Team Associated RC10T4.1 Brushed Motored RTR Truck

assocb1

Based on the seven-time National Champion RC10T4, the brushed RC10T4.1 is a fully assembled truck that features many of the components from the RC10T4 Team kit, while incorporating a totally new 2.4 GHz XP3-SS 3-Channel radio system and SHV1504 MG metal gear steering servo. Power is supplied by a 17-turn Reedy motor while the XP SC200 electronic speed control with LiPo cutoff provides smooth throttle control. A sealed gear differential improves reliability and allows fine tuning for different track conditions.

A brushless version of the RC10T4.1 RTR is also available. CLICK HERE to see the article.

assocb2

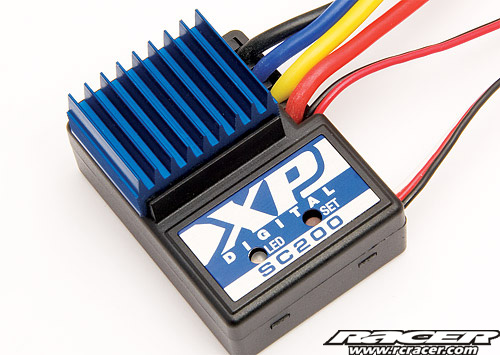

XPSC200 electronic speed control.

assocb3

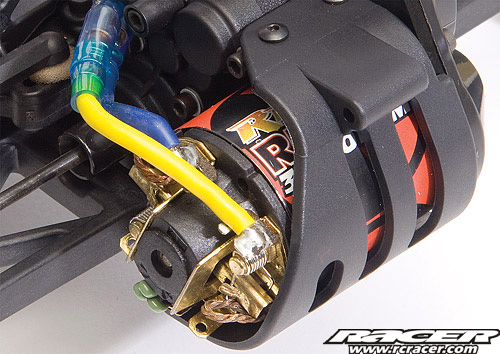

17-turn Reedy motor.

Designed by the winningest name in RC, the RC10T4.1 can be additionally upgraded using a full line of Factory Team T4 hopups, as well as Reedy and LRP performance parts.

assoc4

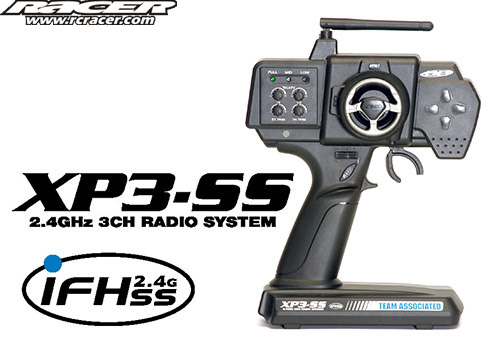

XP3-SS 2.4 GHz 3-Channel radio.

assoc5

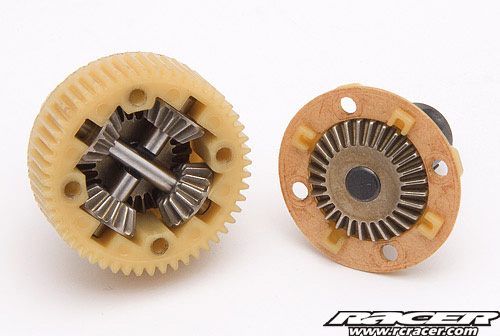

Sealed gear differential.

RC10T4.1 RTR Features:

Built on the 7-time National Champion RC10T4 platform
XP3-SS 2.4 GHz 3-channel radio system with SHV1504 MG metal gear servo
XP SC200 electronic speed control with LiPo cutoff, forward and reverse with reverse lock out
Reedy 17-turn motor
2.6:1 ratio gearbox with sealed gear differential, dual-sided adjustable slipper clutch, and rubber sealed ball bearings
Moulded composite low-CG chassis with set-screw antenna tube lock

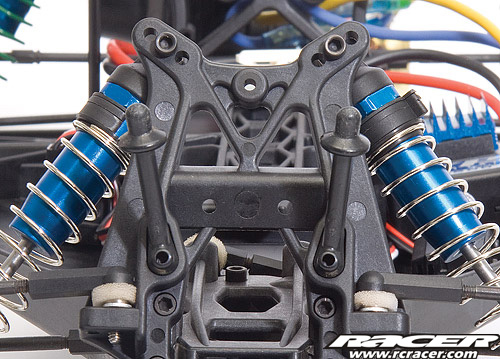

Blue aluminium shock bodies with molded pre-load clips

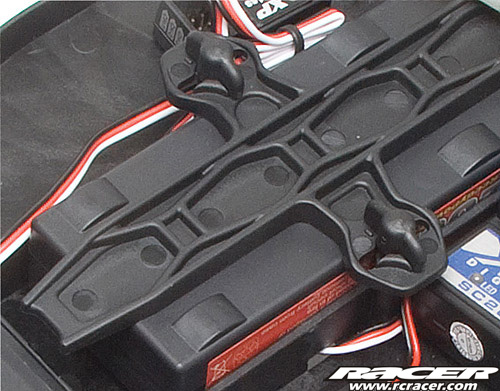

Battery strap with twist-lock thumb knobs
Rugged steel turnbuckles for adjustable camber and front toe-in

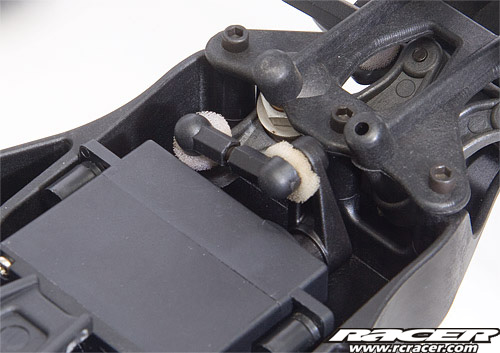

Angled bellcrank â€œco-planarâ€ steering with built in servo saver
Vertical ball ends for roll centre adjustments, front & rear
Pre-mounted tyres on white dish wheels
Factory finished Interceptor-T polycarbonate body
