New Team Powers Brushless Speed Controllers





Abe Racing have sent us over details of the new, soon to be released Team Powers brushless speed controllers. Check out the specifications below and we will bring you more info and details of availability as we get it.

Features:

• Support with all kinds of sensored/sensorless brushless motors in RC model 1:10, 1:12 Car & Truck
• Support Running Mode: Forward with brake, Forward/Reverse, Forward/Reverse with Brake
• Manual/Factory Power profile setting.
• (i) Factory Power profile: it includes 9 levels for modify race and 4 levels LCTS (linear control timing system) for stock race competition
• (ii) Manual Power profile: can support Turbo mode setting
• Use the pocket-size program card to program the controller settings
• Multiple protection functions: Low voltage cut-off protection, Over heat protection, Throttle signal loss protection and Motor blocked protection
• Extra smaller size aluminium casing for cooling
• Extra battery output adaptor connecting to the motor cooling fan

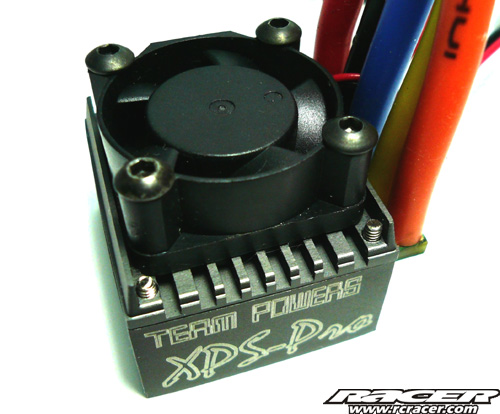

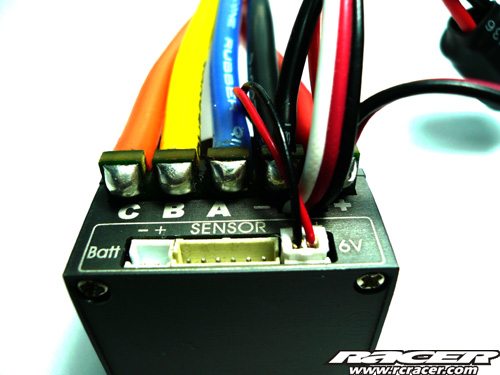

XPS- Pro Technical Specifications

• Continuous current: 120A
• Burst Current (10sec): 720A
• Battery Input: 3.7V LiPo 2 cells/1.2V NiMh/NiCd 4-6 cells
• BEC Output: Linear 6V/2A
• Weight (not included wiring & fan): 42g
• Dimension(L x W x H) (Including the fan assembly to the ESC): 32 x 30 x 28mm
• Motor limit with 2 cell x 3.7V LiPo: 3.5 Turn or over

XPS-Sport Technical Specifications

• Continuous current: 65A
• Burst Current (10sec): 400A
• Battery Input: 3.7V LiPo 2 cells/1.2V NiMh/NiCd 4-6 cells
• BEC Output: Linear 6V/2A
• Weight (not included wiring & fan): 41g
• Dimension(L x W x H) (Including the fan assembly to the ESC): 32 x 30 x 28mm
• Motor limit with 2 cell x 3.7V LiPo: 5.5 Turn or over

XPS-EL Technical Specifications

• Continuous current: 35A
• Burst Current (10sec): 160A
• Battery Input: 3.7V LiPo 2 cells/1.2V NiMh/NiCd 4-6 cells
• BEC Output: Linear 6V/2A
• Weight (not included wiring & fan): 40g
• Dimension(L x W x H) (Including the fan assembly to the ESC): 32 x 30 x 28mm
• Motor limit with 2 cell x 3.7V LiPo: 9.5 Turn or over

Setting Card Program Items includes:

• Power Profile
• Sensor Timing (2nd Step)
• Running Mode
• Turbo Delay
• Low Voltage Protection
• Max Reverse Force
• Initial Punch Level
• Max Brake Force
• Exponential Punch Level
• Drag Brake Force
• PWM Frequency
• Over Heat Protection
• Sensor Timing (1st Step)



Source: Abe Racing
