Spektrum High Performance Digital Car Servos
Recently we took a look at a couple of new additions to Spektrum’s range of Surface use servos, and very nice they were too. However a glance at the full range revealed that there are also a couple hiding in the Air and Heli ranges that are ideal for RC car racers as well. We spoke with the UK distributor, Horizon Hobby UK and they confirmed this too so here are two more servos from the Spektrum range that will be well worth you considering…

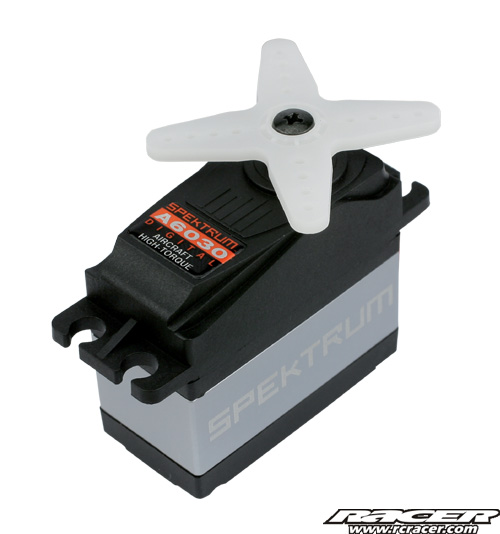

Spektrum A6030 Digital Servo – High Torque
The A6030’s extremely tough titanium gear train, digital precision and incredible 278 oz-in of torque is ideal for any giant-scale application from 3D planes to warbirds as well as RC cars. The A6030’s holding power and precision are further enhanced by the rigidity of its aluminium case which also functions as a heatsink to dissipate heat.
Key Features
- 278 oz-in of torque at 6V provides an incredible amount of power in demanding applications
- Precise digital control
- Coreless motor for extended motor life and smooth operation
- Dual ball bearings provide less resistance for higher performance and longer lifeTitanium gears for maximum durability
Product Specifications
- Size Category: Standard
- Type: Digital
- Application: Giant Scale/Cars
- Torque: 278 oz-in @ 6V
- Speed: 0.15 sec/60° @ 6V
- Dimensions (WxLxH): .8 x 1.6 x 1.5 in (40 x 20 x 37mm)
- Weight: 1.8 oz (52.4 g)
- Bushing Or Bearing: Bearing
- Bearing: Dual
- Motor Type: Coreless
- Connector Type: Z Connector
- Gear Type: Metal
- Gear Material: Titanium
- Voltage: 4.8 or 6.0V (4 or 5 cell)

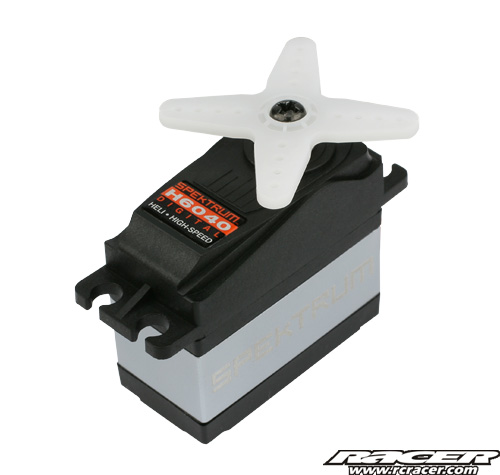

Spektrum H6040 Digital Servo – High Speed
The titanium-geared H6040’s lightning-quick .08-second transit time and impressive 167 oz-in of torque are ideal for use in competition-class .50- to .90-size helis that get pushed to the limits of 3D performance as well as use in RC cars. Its holding power and precision are further enhanced by the rigidity of its aluminium case which also functions as a heatsink to dissipate heat.
Key Features
- Ultra fast 0.08-second transit time with 167 oz-in of torque
- Precise digital control
- Coreless motor for extended motor life and smooth operation
- Titanium gears for maximum durability
- Dual ball bearings provide less resistance for higher performance and longer life
Product Specifications
- Size Category: Standard
- Type: Digital
- Application: 50- to 90-size Helis, 600-class Electrics/Cars
- Torque: 167 oz-in @ 6V
- Speed: 0.08 sec/60° @ 6V
- Dimensions (WxLxH): .8 x 1.6 x 1.5 in (40 x 20 x 37mm)
- Weight: 1.8 oz (52.4 g)
- Bushing Or Bearing: Bearing
- Bearing: Dual
- Motor Type: Coreless
- Connector Type: Z connector
- Gear Type: Metal
- Gear Material: Titanium
- Voltage: 4.8 or 6.0V (4 or 5 cell)
Source: Horizon Hobby UK
