Team Associated Brushless SC10 RTR

By admin On May 20, 2010 · Add Comment

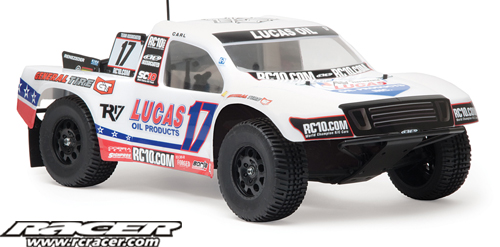

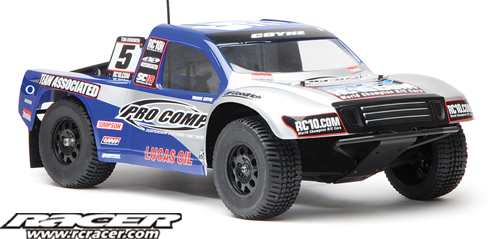

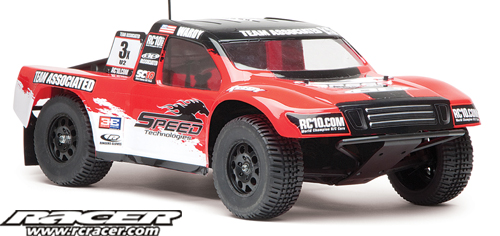

Team Associated Brushless SC10 RTR

7044.ps

Called â€œThe truck to be reckoned with at the racetrackâ€ by RC Car Action, Team Associated’s Brushless SC10 is modelled after the trucks racing in the Lucas Oil Off Road Racing Series. Loaded with new features for this season, Team Associated’s SC10 will electrify your excitement with the XP/Reedy 3300 KV Brushless system and is controlled by a XP3-SS 2.4GHz 3-channel radio system.

7040-chassis.ps

Based on the 7-time R.O.A.R. Nationals-winning RC10T4, the SC10 brushless comes ready-to-run with a factory-finished short-course race truck body, short-course-style wheels, and aggressive tread multi-terrain tyres, all which have been designed to look just like the full-size race trucks that run in short-course off-road series around the country.

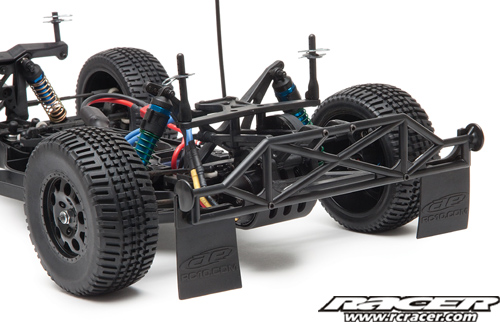

7040-rear-bumper.ps

SC10 Brushless RTR Specifications

Scale: 1:10
Power: Electric
Length: 550mm
Width: 293mm
Weight: 2080g
Wheelbase: 327mm
Internal Gear Ratio: 2.6:1
Drive: 2WD

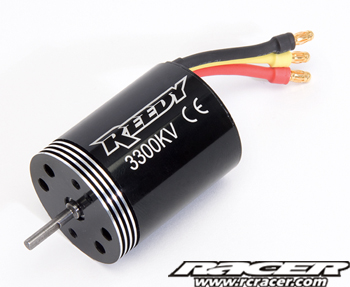

reedy-3300kv-motor.ps

SC10 Brushless RTR Features

2009 R.O.A.R. National Champion short-course truck
XP3-SS 2.4GHz 3-channel radio system with metal gear steering servo
XP SC450-BL Brushless electronic speed control with LiPo cutoff
Reedy 3300kV Brushless motor
â€˜09 Championship short course racing truck body, painted and decalled
Updated suspension settings for more rear grip and stability
Short course style wheels and aggressive tread multi-terrain scale tyres
2.6:1 ratio gearbox with sealed gear differential and externally adjustable slipper clutch
Realistic front and rear bumpers with AE logo rear mud flaps
Moulded composite low-CG chassis with increased strength
Hinged battery hold-down strap fits NiMH and LiPo battery packs
14 precision rubber-sealed ball bearings
Durable front and rear body mounts
Rugged steel turnbuckles
Fully adjustable suspension geometry
Angled bellcrank â€œcoplanarâ€ steering with integral servo saver
Vertical ball end roll-centre adjustments front & rear
Steel rear dogbone drive shafts
Many Factory Team and Reedy option parts already available!

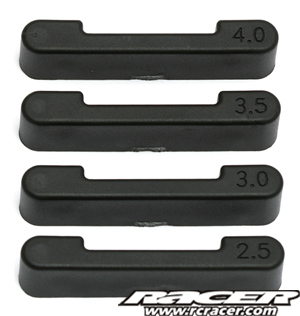

7487.ps

Includes new #7487 rear arm mounts that allow 4 choices of rear toe-in. This feature allows you to adjust the amount of rear toe-in to suit your track conditions.
