Team Orion Experience 2 Pro Brushless System For Short Course

Short Course Racing has never been more popular – not only backyard bashers love the trucks, also racers were attracted by the Short Course action. Just lately Team Orion super star Jared Tebo won the Short Course Showdown held at Trackside Hobbies in Milwaukee!

Maximum Power, Best Drive-ability

Team Orion developed an all new Brushless System with only one goal: deliver more power, more speed and more punch to Short Course trucks! they always kept in mind to give the driver perfect feel and drivability. This way the Experience 2 Pro Brushless system was born!

Great Compatibility With Short Course Trucks On The Market

Hundreds of testing hours have been invested to develop the optimal brushless system for the short course application. The system has been tested in the Short Course trucks available on the market to provide best compatibility.

Perfect Fit Into Traxxas Slash

To fit the very popular Traxxas Slash short course truck, the large size heatsink features two mounting holes. Like that the speedo can be installed in the car with two screws – exactly like the standard ESC of the Slash! It also comes standard with the TRX high power connector.

Easy To Install, Easy To Use!

The Brushless system is equipped with all the goodies from the well known Experience 2 Brushless technology like automatic setup and plug & play technology.

Features

• High Power Brushless System for Short Course Trucks
• Experience 2 Pro 3750KV High Power Motor, 550sized
• Experience 2 Pro Sensorless Brushless speed control with integrated cooling fan
• Plug & Play Technology
• Automatic Setup
• TRX Connector
• Direct fit on Traxxas Slash and many other Short Course Trucks
• Optimal ESC/Motor Combo

Part Numbers

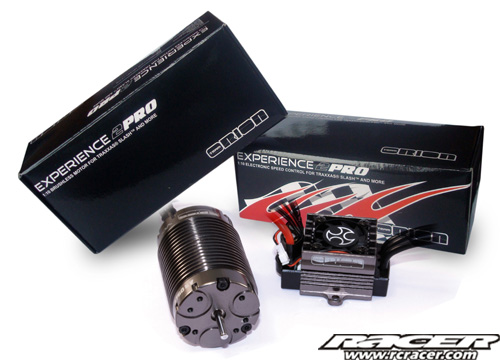

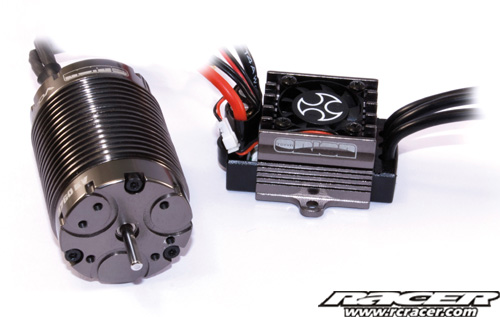

• ORI66045    Experience 2 Pro Combo (motor+controller with fan)
• ORI28179    Experience 2 Pro Motor
• ORI65016    Experience 2 Pro Controller

Technical Specifications

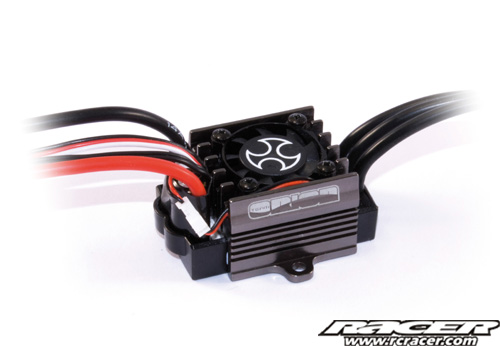

• ESC (ORI65016):
• BL system: sensorless
• Functions: Forward/Brake/ Reverse
• Battery connector: TRX
• Input voltage: 6-8 cells NiMH/NiCd, 2-3 cells LiPo/LiFe
• Max current: 70A
• Peak current: 360A
• BEC: 6V 2A
• Weight: 88g
• Dimensions: 52.5x45x24mm
• Can be used with the Vortex DSB (ORI65020)

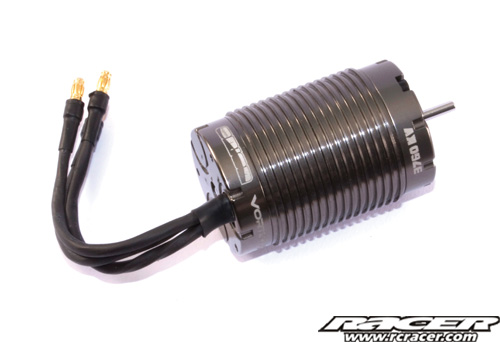

• 10T Motor (ORI28179):
• Input voltage: 6-8 cells NiMH/NiCd, 2-3 cells LiPo/LiFe
• Max current: 70A
• Peak current: 90A
• Resistance: 0,0083Ohm
• No load current: 2.8A
• Winding: 10T
• RPM/V: 3750KV
• Shaft length: 16.5mm
• Shaft diameter: Ø 3,175mm
• Dimensions: 38x56mm
• Weight: 234g



Source: Team Orion
