Xray XB808 Aluminium Adjustable Rear Hubs

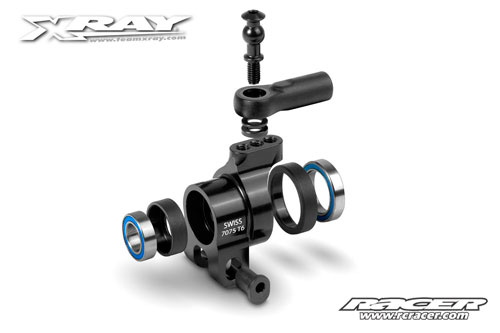

These new aluminium adjustable rear hubs for the XB808 are CNC machined from premium lightweight Swiss 7075 T6 aluminium and are hard-coated for extra durability and long life. These new rear hub carrier offer the possibility to adjust the roll centre of the chassis as there are three holes where the upper linkage can be mounted, and then this can be raised or lowered using shims to increase or decrease the angle. Xray includes composite bushings to secure the bearings in both sides of the hub carrier, allowing perfect fitment and smooth operation to ultimately impart much higher lifespan compared to bearings installed directly into aluminium hub carriers. Additional roll centre adjustments are possible through the use of composite roll center bushings that can be inserted in two different orientation positions for the pivot pin. Holes in the upper position give +2mm upper roll centre, while holes in the lower position are equal to the standard composite roll centre position.

#353357 XB808 Alloy Adj Rear Hub Carrier – Swiss 7075 T6 – Hard-Coated

Source: Xray
