Savox Competiton Spec Servos

By admin On June 27, 2011 · Add Comment

Savox High Torque/High Speed Coreless Digital Servos

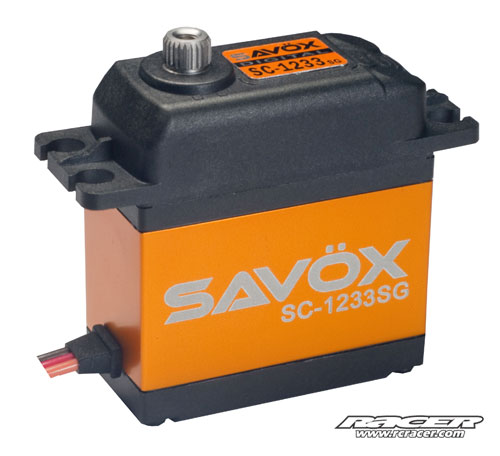

savox-SC-1233SG

The new SC-1232SG and SC-1233SG servos are the latest top of the range units from Savox. The 1232 is built for torque (22kg) and ideal for 1:8 scale applications and uses a larger motor within the taller case to help handle heavy loads with a steel gear train. The new SC-1233SG servo offers greater speed than the aforementioned model with a transit time of 0.7 of a second per 60-degrees again making it ideal for 1:8 scale use. The full details and specs of both models are listed below:

SC-1232SG
Dimensions: 40.3×20.2x 45mm
Weight: 79g
Speed (60°): 0.15 second @4.8V/0.13 second @ 6.4V
Torque: 18kg-cm @ 4.8V/22kg-cm @ 6V
Gear: Unique Steel
Case: Aluminium
Bearing: 2BB

SC-1232SG
Dimensions: 40.3×20.2x45mm
Weight: 79g
Speed (60°): 0.8 second @4.8V/0.7 second @ 6.4V
Torque: 10kg-cm @ 4.8V/13kg-cm @ 6V
Gear: Unique Steel
Case: Aluminium
Bearing: 2BB

Savox SAV-SC1232SG £74.99
Savox SAV-SC1233SG £74.99

Source: CML Distribution
