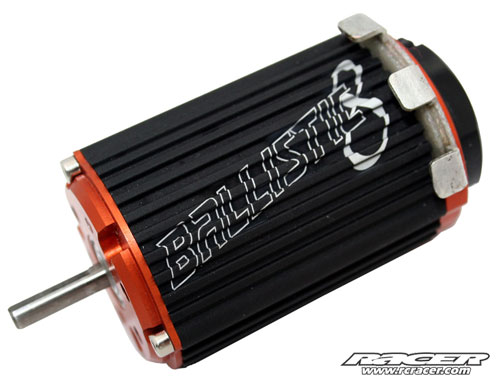

Novak Ballistic 8 Sensored Brushless Motor

Novak’s new Ballistic 8 sensored brushless motor is specifically designed for the rigors of today’s 1:8 racing arena and will be initially available in two motor winds─1.5Y (Wye-wound) and 2D (Delta-wound). The Ballistic 8 includes adjustable motor timing, an inter-changeable wound-stator design, and is built to ROAR specifications and is perfect for 1:8 scale buggies, truggies and monster trucks.
The rotor is perfectly balanced by being drilled so there are no epoxy weights which means trouble-free operation. Novak uses four high-strength Neodymium magnetic segments that are secured not only with high-strength epoxy, but are also precisely located with machined guides that are keyed to the shaft to ensure exact magnetic alignment and prevent the magnets from slipping on the shaft. As a final step, each rotor is given a complete Kevlar wrap and rolled in epoxy to make certain no harm can come to the rotor while in operation.
Novak’s Ballistic 8 motor is completely serviceable and every component or assembly of the motor can be purchased separately. The wound stator can even be interchanged to experiment with a different Kv wind.
To alter the timing you simply loosen the three timing screws on the back end bell and rotate to the desired timing. Once the timing is set, the rear bearing cover can be removed by simply taking out two of the timing screws. This allows removal of the user-replaceable sensor harness and inspection of the rear bearing without altering the timing, and locks the sensor harness in place during normal operation.

#3801 Ballistic 8 Sensored Brushless Motor – 1.5Y/1,950Kv
#3802 Ballistic 8 Sensored Brushless Motor – 2D/2,650Kv

Source: Novak Electronics
