Team Associated RC10TC6.1 FT Kit

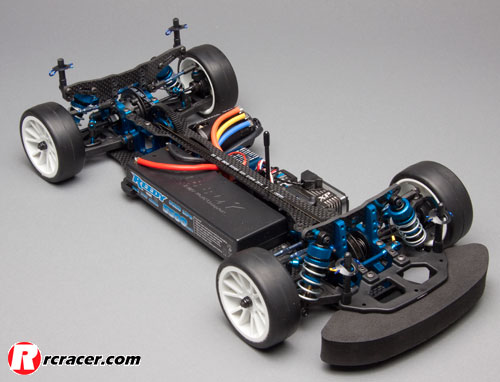

The RC10TC6.1 Factory Team kit is the next evolutionary step in touring car design from Team Associated. Building on the successfully proven TC6, the designers have added more features with the aim of making the TC6.1 easier to tune and drive. The TC6.1 narrow chassis has been designed around current brushless motor systems and LiPo batteries. To further enhance handling performance, the TC6.1 has received updated suspension arms for increased stiffness and strength with finer shock position adjustments. New caster blocks and rear hubs feature integrated inserts for caster and rear-toe angle adjustments. Now you can change these angles by merely changing the inserts and not the whole assemblies.

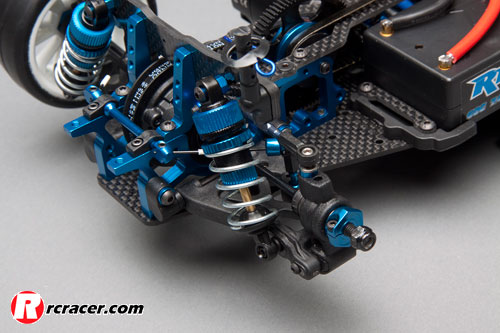

The TC6.1 features HDRC (High Definition Roll Control) system, taking anti-roll bar technology to the next level. The HDRC is built on a solid aluminium centre member that rolls on a bearing surface. Roll stiffness is controlled and adjusted by the two wires that mount into the sides of the aluminium centre member and link to the suspension arms. By removing the torsional flex with the aluminium centre member, a higher definition of roll control is achieved with the different wire options.
Also new on the car is a lightweight rear gear differential that provides maximum performance and low maintenance. The front spool now features replaceable composite outdrives that still retain the low friction, free movement performance of the CVA blades, while being much more economical to replace after a hard impact. Symmetrical blue aluminium bulkheads and cross-compatibility with TC6 chassis components also help make the TC6.1 more economical to run. The TC6.1 comes equipped with the Factory Team VCS3 shock package that features hard-anodised threaded shock bodies with bottom-loaded seals. The VCS3 shocks are super smooth and have an increased stroke for more up-travel at the wheels, all adding up to more consistent overall traction. Multi-position steering system with additional Ackermann options and an improved steering input rate gives the TC6.1 more consistent handling. Blue titanium turnbuckles come with new ball cup eyelets for easier access to the ball studs.
#30107 Team Associated TC6.1 Factory Team Kit
Source: Team Associated
