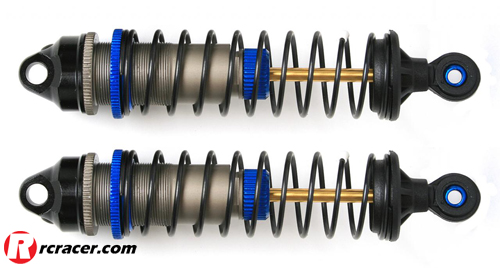

Team Associated’s 12mm 1:10 Scale 12mm Big Bore Shocks
Team Associated has released details of a new range of 12mm big bore shock absorbers. They are precision CNC machined from hard anodised aluminium with aluminium shock caps, threaded collars and seal caps. These shocks have been tested and developed by Team Associated’s top drivers to provide a plush and consistent feel for the 1:10 off-road fleet of Team Associated vehicles. Since their winning debut in prototype form at the 2012 Cactus Classic, the team has used them to win every major event in the US including a dominating performance by Ryan Cavalieri at the ROAR 1:10 Off-Road Super Nationals in 2WD and 4WD Modified. Some of the key features are:
12mm hard anodised big bore threaded shock body
Titanium Nitride (TiN) 3mm shock shaft with stronger M3 threads
Black hard-anodised aluminium shock cap with bleeder screw
12mm two-hole piston (1.5mm, 1.6mm and 1.7mm)
Shock shaft hat bushing guide ensures concentric shock shaft alignment
Optimised seal gland fit for smooth and consistent performance
Factory Team blue anodised aluminium seal gland cap
Factory Team blue anodised aluminium shock collar
Three spring cup heights (+0mm, +5mm and +9mm offset)

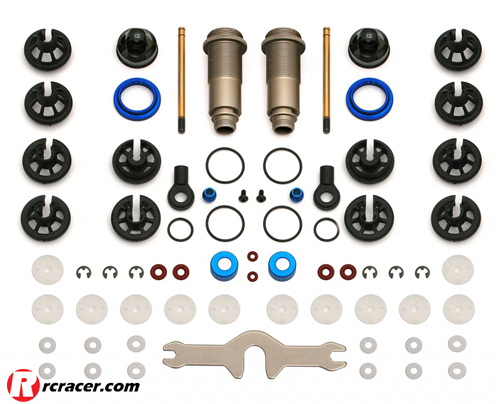

Shock Kits:
91314 12mm Shock Kit (B4/B44 front – all models)
91315 12mm Shock Kit (SC10/T4 front – all models)
91316 12mm Shock Kit (B4/B44 rear – all models)
91317 12mm Shock Kit (SC10/T4 rear – all models)

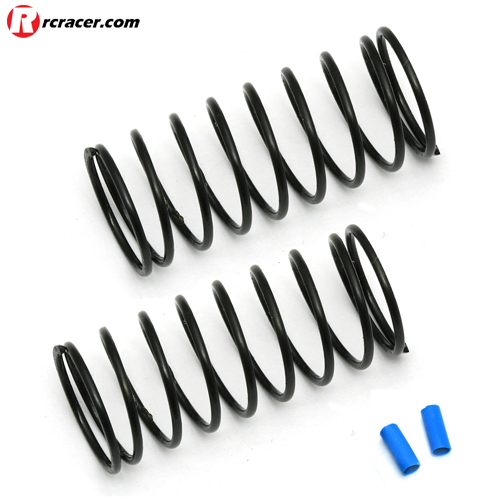

Alongside the shocks are new 12mm big bore springs for the B4.1, B44.1, T4.1, SC10 and SC10GT. These are black oxide coated to reduce corrosion without affecting rate tolerances and come in two universal lengths. By using different offset spring cups, you can obtain your desired ride height on all platforms with the same front or rear springs so there is no more need for truck and buggy sizes. Precision wound and measured in the USA, they are made from high quality ASTM wire and with a larger diameter to reduce buckling and spring rubbing. They are available in fine spring rate increments (0.15lbs/in front/0.10lbs/in rear and have coloured pre-cut shrink tubing for spring identification. The springs are available individually or as soft, medium and hard kits with the details listed below:
Kits
91341 12mm Front Soft Spring Kit (3 pairs)
91342 12mm Front Medium Spring Kit (3 pairs)
91343 12mm Front Hard Spring Kit (3 pairs)
91344 12mm Rear Soft Spring Kit (3 pairs)
91345 12mm Rear Medium Spring Kit (3 pairs)
Springs
91325 12mm Front Spring – brown (2.85lb)
91327 12mm Front Spring – green (3.15lb)
91328 12mm Front Spring – white (3.30lb)
91329 12mm Front Spring – grey (3.45lb)
91330 12mm Front Spring – blue (3.60lb)
91331 12mm Front Spring – yellow (3.75lb)
91332 12mm Front Spring – red (3.90lb)
91333 12mm Front Spring – orange (4.05lb)
91334 12mm Front Spring – purple (4.20lb)
91335 12mm Rear Spring – black (1.90lb)
91336 12mm Rear Spring – green (2.00lb)
91337 12mm Rear Spring – white (2.10lb)
91338 12mm Rear Spring – grey (2.20lb)
91339 12mm Rear Spring – blue (2.30lb)
91340 12mm Rear Spring – yellow (2.40lb)
Source: Team Associated
