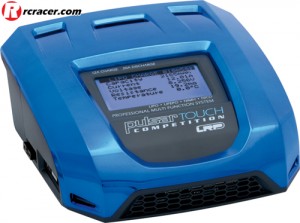

Launched in 2010, the LRP Pulsar Touch was the first charger to feature a touch screen and it still remains a popular unit. But LRP has been working hard on some updates so the new version will come with an additional EHR to XHR balancer wire for the best compatibility. In addition, the discharge cut-off voltages of the pre-set programs one through to four have been changed and instead of 3.2V/2.2V now 3.3V/2.3V is available that LRP state is “perfect for a long battery life”. Finally the striking blue colour is now more resistant against UV light.
Just like the original, you get up to 12A charge current, balancing of up to 4S Lithium-based cells, motor/speed control/servo function test, firmware update via USB, fast touch screen and easy to understand menu navigation and these have all been carried over to the 2014 version.
The most important technical features are as follows:
Multifunction device (charge, discharge, cycle, balancer, motor/speed control/servo test)
Up to 12A charge current
Up to 20A discharge current (+35A Pulse discharge)
LiPo, LiFePo, NiMH, NiCd compatibility Integrated balancer for 2S-4S Lithium-based packs
LCD with touch screen
Five user profiles Multi Protection System
The following accessories are included:
USB wire
Output wire with alligator clips
Output wire with 4mm plug and balancing connector
Y-Hall sensor board (for motor RPM measurement)
Adapter wire EHR to XHR
Three sensor wires
41556 LRP Pulsar Touch Competition System
Source: LRP
